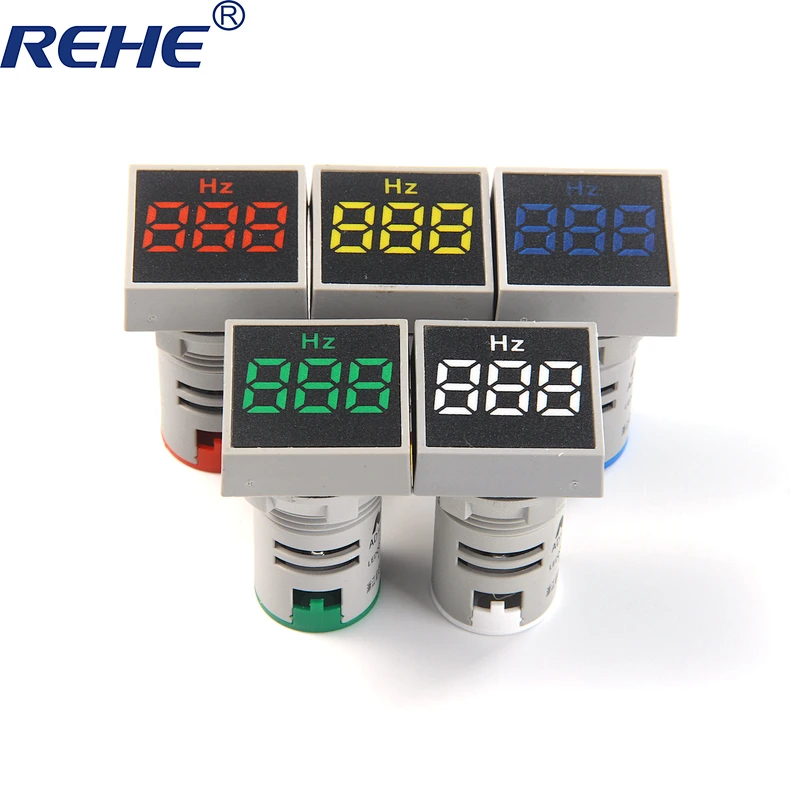

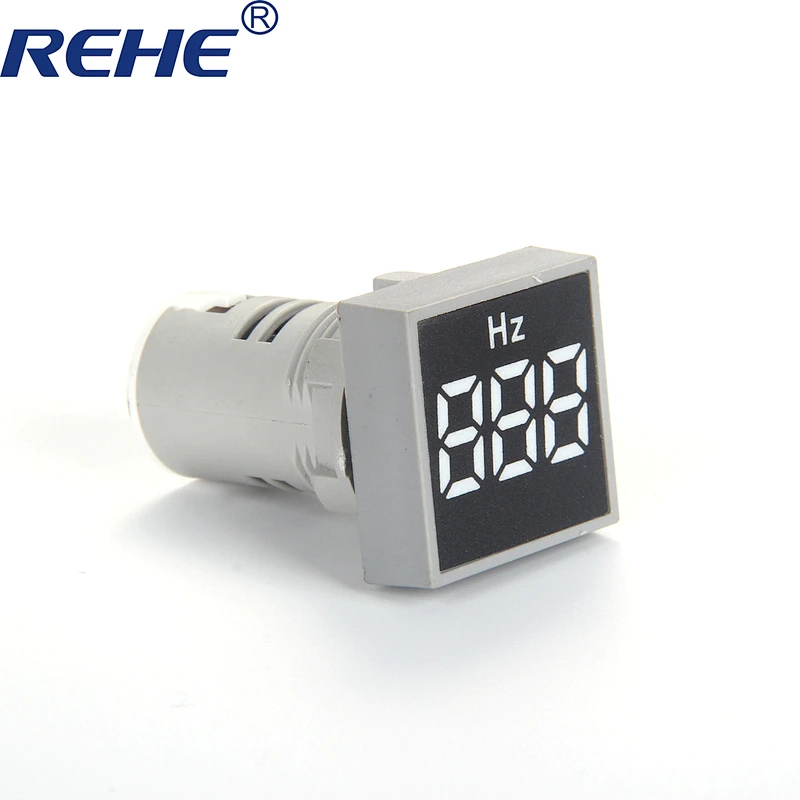

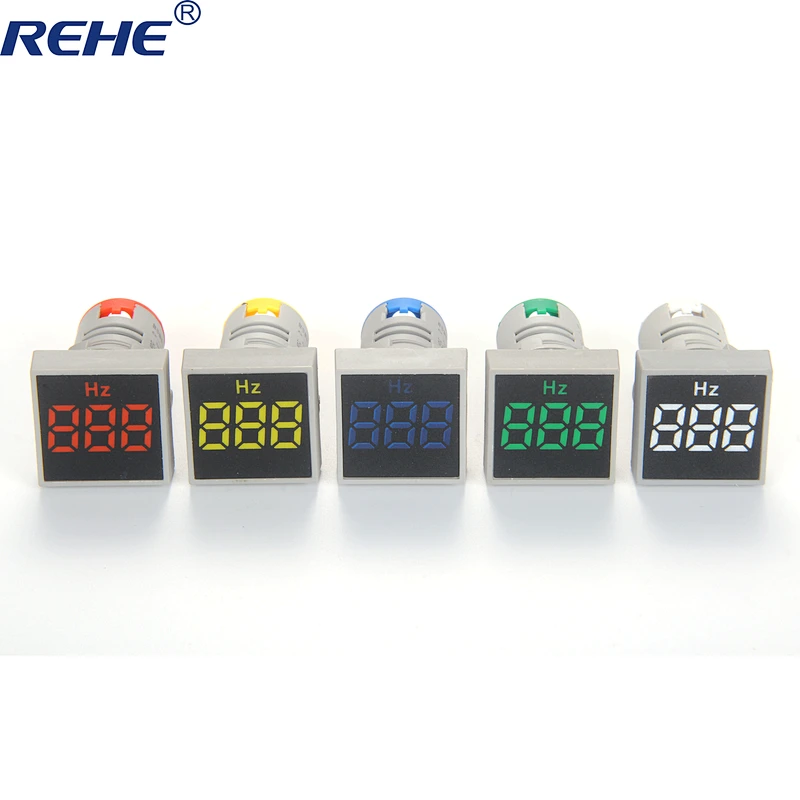

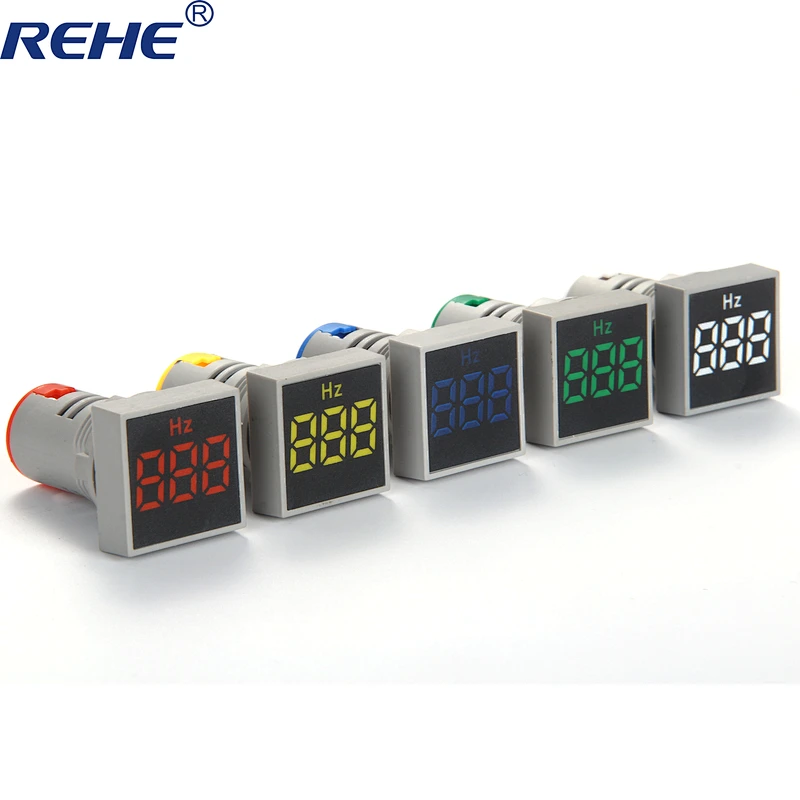

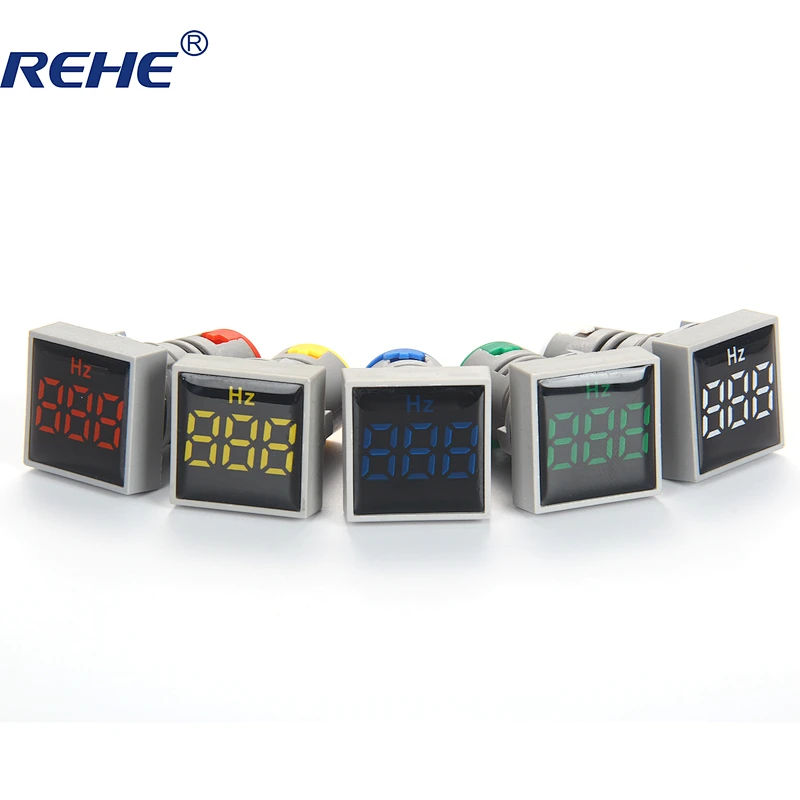

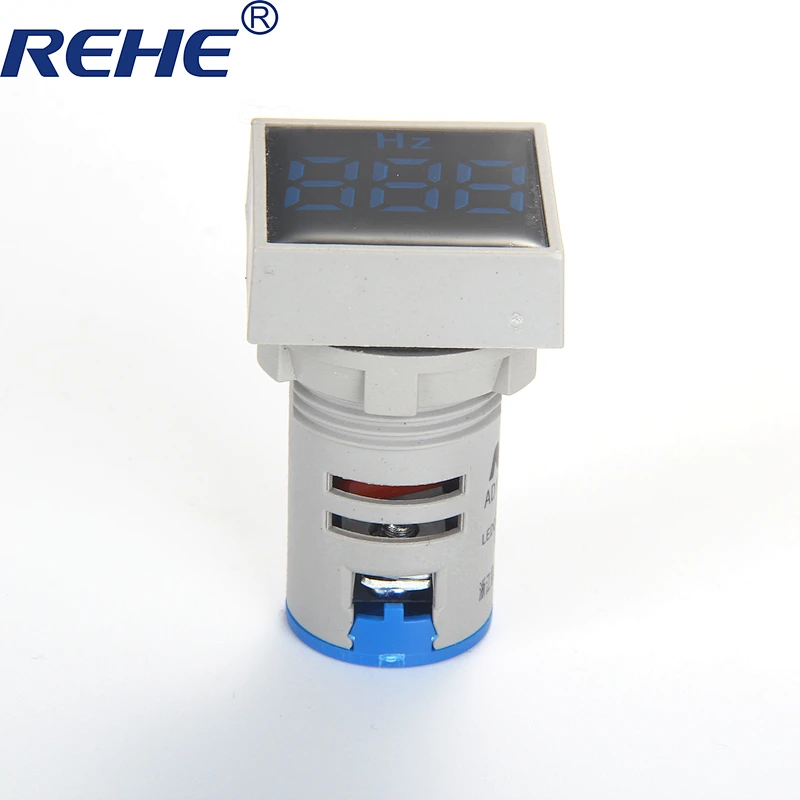

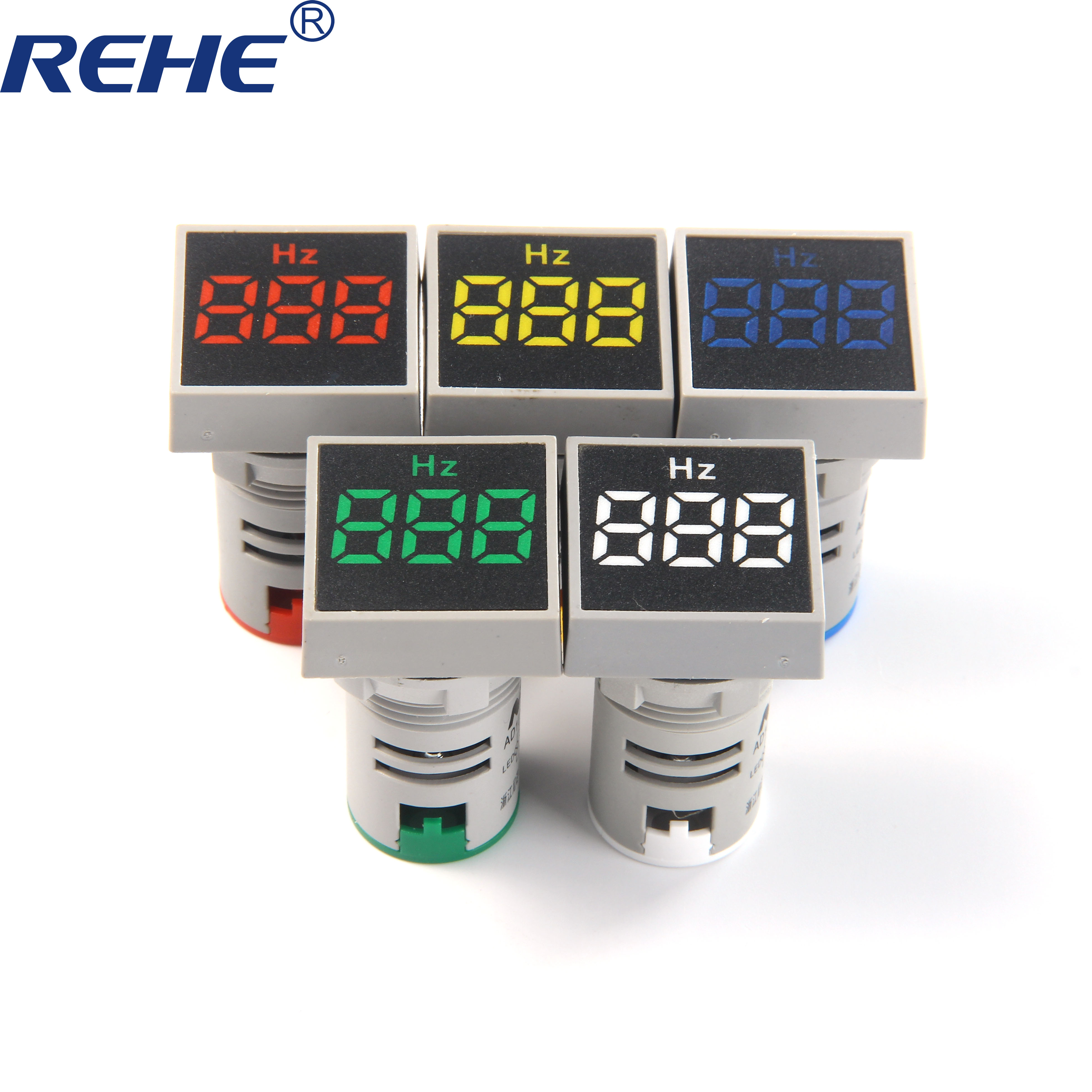

AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz
AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz

AD16 22mm blue LED Digital Display Electricity Hertz Frequency Meter 0-99hz

Model NO.
REHE-AD101-22HZS
Price:
US $ 0.95-0.95 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
1000000.0 piece / Month
Country of Origin
Zhejiang, China
Quantity:
  • Dimensions:22MM
  • Input voltage:AC 220V
  • Voltage Measuring range:AC 50-500V
  • Frequency Measuring range:3-120 HZ
  • Accuracy:2% ± Hz
  • Sample rate:About 1time/s
  • No input signal hint message:Display 000
  • Input circuit power loss:<2VA
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Model Number:REHE-AD101-22HZS
  • Measuring Energy Range:0-99HZ
  • Output Voltage:3v-480v
  • Operating Temperature:-25℃~+55℃
Product Description


Product Name
AD101-22HZS DIGITAL HERTZ METER
Lens Material
PC
Volt
3v-480v
Color of Lens
R-red, Y-yellow, B-blue, G-green, W-white
Life
≥30,000h
Brightness
≥100cd/Square Meters
