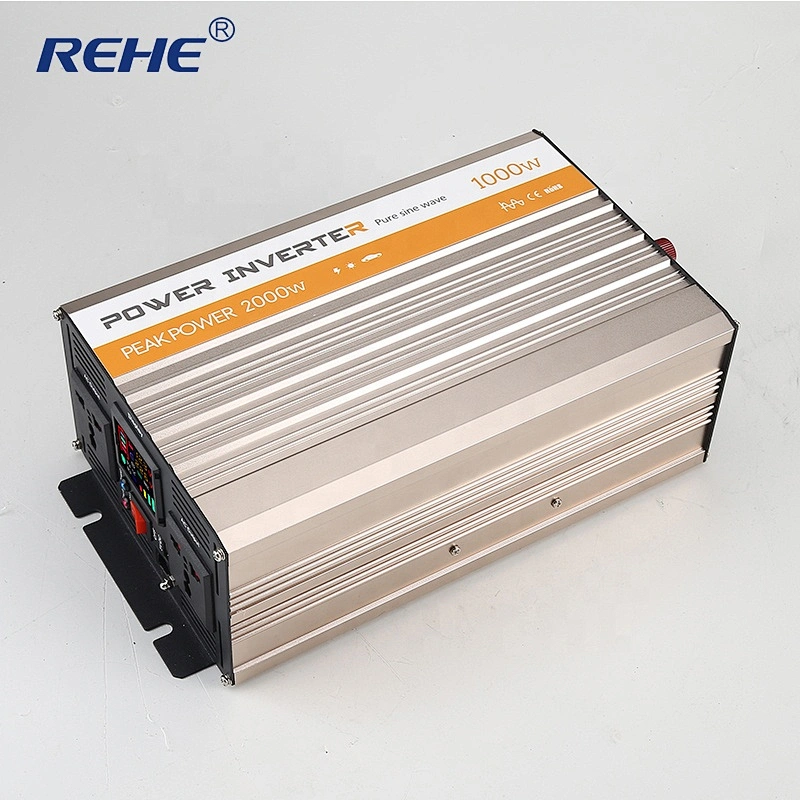

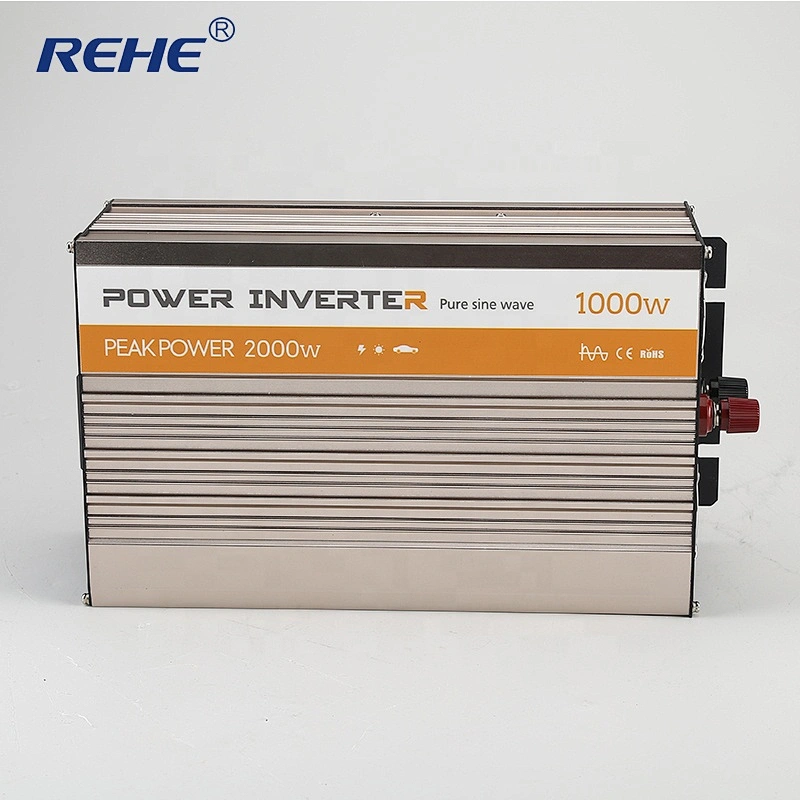

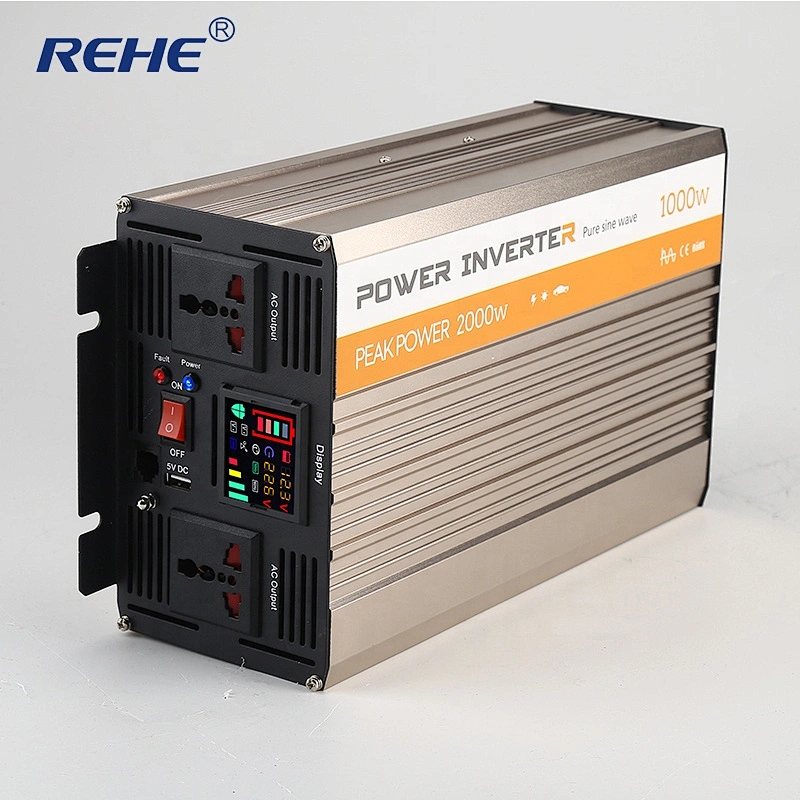

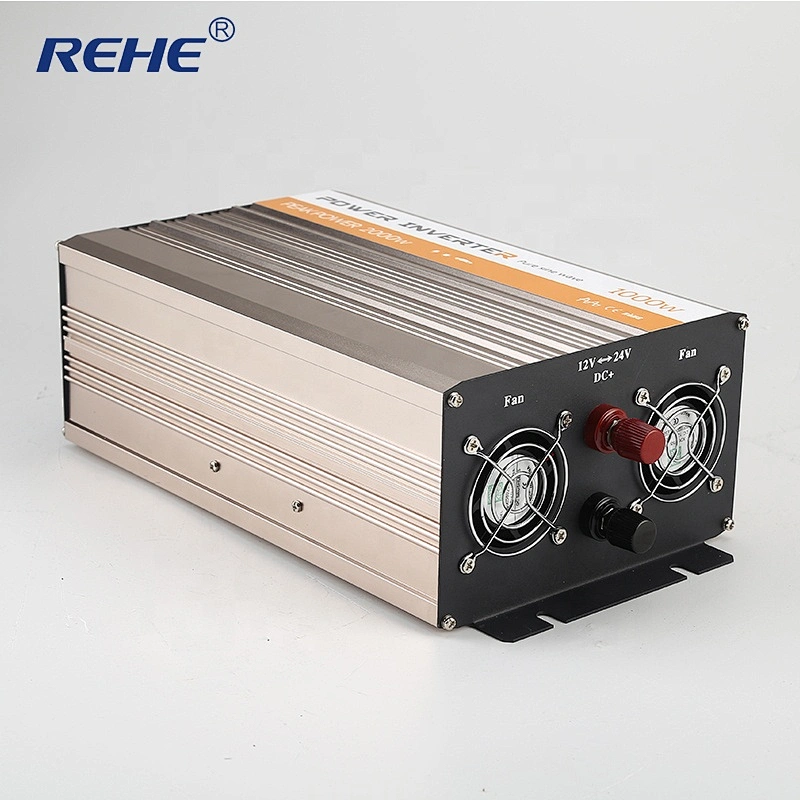

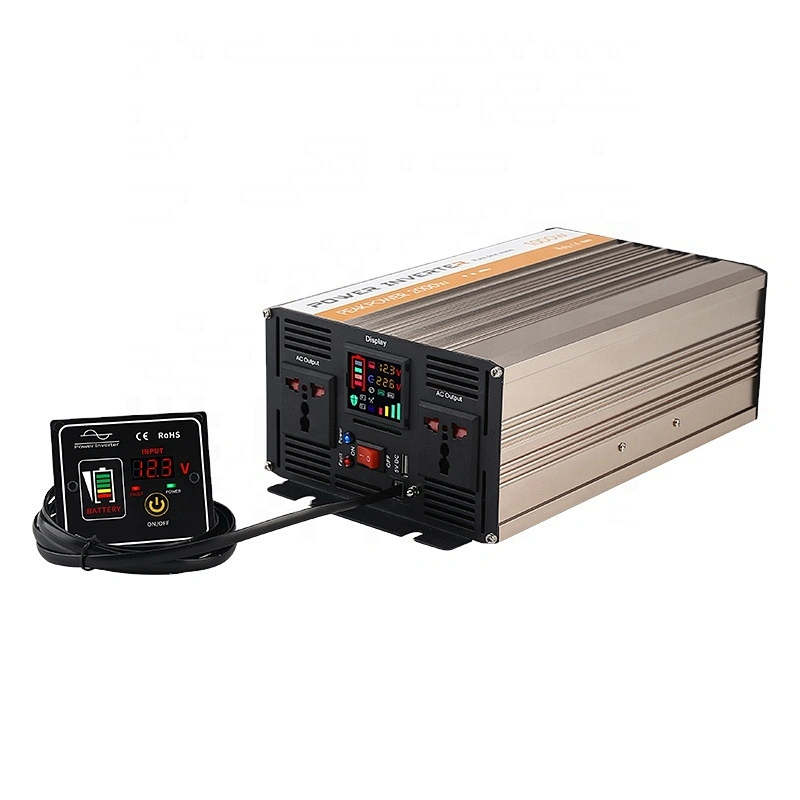

- Product name:Solar Power Inverter
- Color:Brown
- Inverter type:Off-grid Solar Power Inverter
- Efficiency:94%
- Frequency:50/60HZ
- Wave form:THD<3%(Linear Load)
- Protection Function:Short Circut Protection
- Output waveform:Pure Sine Wave Output
- Output Type:DUAL
- Type:DC/AC Inverters
- Brand Name:REHE
- Model Number:CSP1000-12/24V-2
- Input Voltage:12Vdc/24Vdc
- Output Voltage:110VAC or 220VAC
- Output Frequency:50Hz/60Hz
- Size:320*171*103mm(LxWxH)
- Inverter Efficiency:94.2%
- Certificate:CE Rohs
- Warranty:2 Years
- Weight:4kg
| Specification | ||||||
| Model | CSP1000-12/24V-2 | |||||
| Rated Power | 1000W | |||||
| Surge Power | 2000W | |||||
| Input Voltage | 12V/24VDC automatic recognition | |||||
| Output Voltage | 110VAC±5% | 220VAC±5% | ||||
| USB Port | 5V 1000MA | |||||
| Frequency | 50HZ±3 or 60HZ±3 | |||||
| Output Waveform | Pure sine wave | |||||
| Soft Start | YES | |||||
| THD/AC Regulation | THD<3%(Linear Load) | |||||
| Output Effciency | 94.2% MAX | |||||
| No Load Current) | 0.2A | 0.1A | ||||
| DC Voltage Range | 10V-15V | 20V-31V | ||||
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | ||||
| low Voltage Shut Down | 10±0.5V | 20±0.5V | ||||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | ||||
| Over Voltage Shut Down | 15±0.5V | 31±0.5V | ||||
| Over Voltage Recovery | 14.7±0.5V | 29±0.5V | ||||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | (-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade) | |||||
| Storage Temperature | (-40℃ - 70℃) | |||||
| Humidity | 90% MAX,Non-condensing | |||||
| Warranty | 2 Years | |||||
| Net Dimension | 320*171*103mm(LxWxH) | |||||
| Package Dimension | 395*230*170mm(LxWxH) | |||||
| N.W./Unit/G.W./Unit | 3.2kg/3.6Kg | |||||
| Ctn | 6PCS | |||||
| Meas./Ctn | 535*470*407mm(LxWxH) | |||||
| G.W./Ctn | 23kg | |||||
Send Message
Related Products

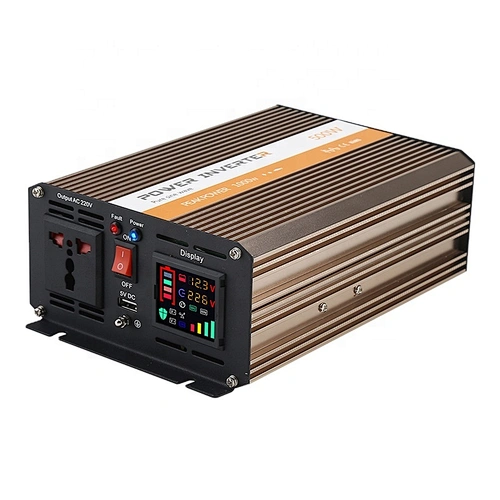

Model NO. CSP500-12/24V-2
