- Color:Black/White
- Display:Red LED Digital Display
- Name:Ammeter
- Phase:Single
- Certificate:CE ISO9000
- Usage:Industrial
- Features:Economical Single Phase Digital Ammeter
- Function:Single Phase Digital Current Transmitter
- Measuring Current Range:AC5A
- Delivery:Express or as your request
- Display Type:Digital Only
- Brand Name:REHE
- Model Number:RH-AA61J
- Measuring Range:0~9999
- Accuracy Class:0.5
- Supply Voltage:AC/DC80V~270V
- Operating Temperature:-10℃~+55℃

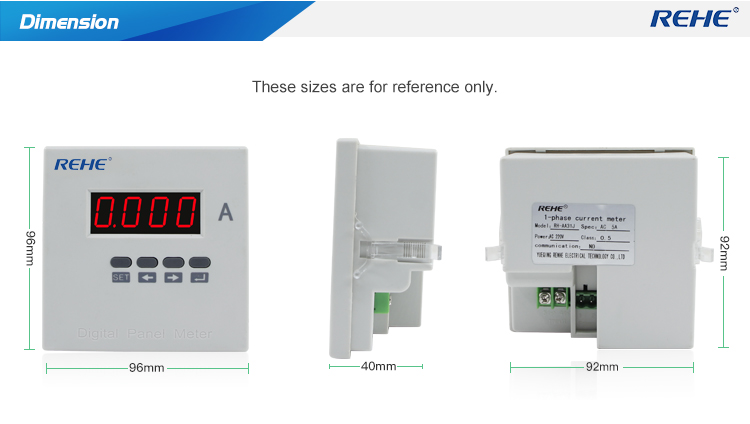

- Dimensions:72*72mm
- Place of Origin:CN;ZHE

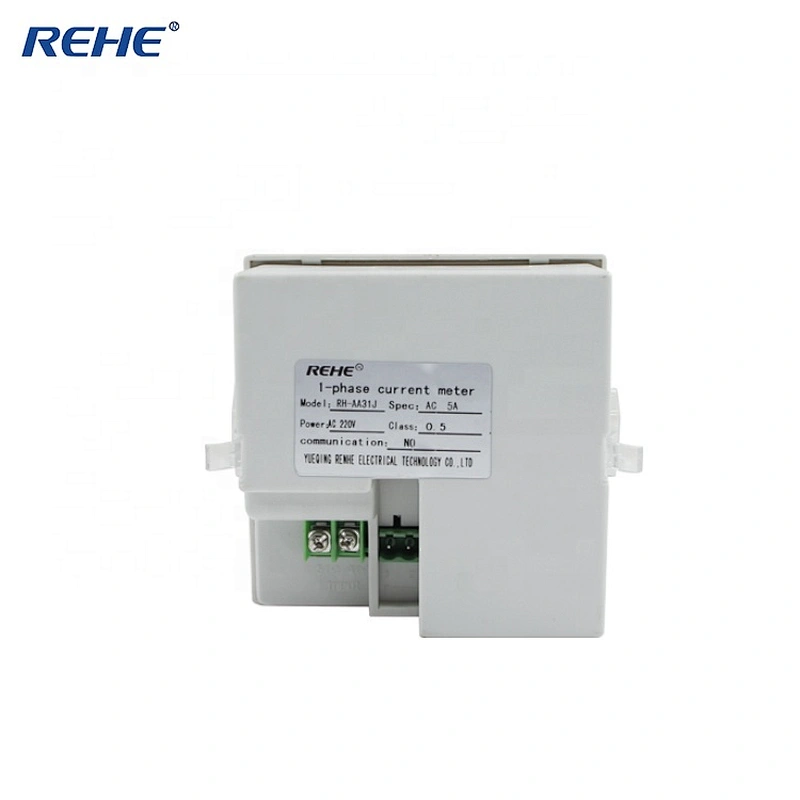

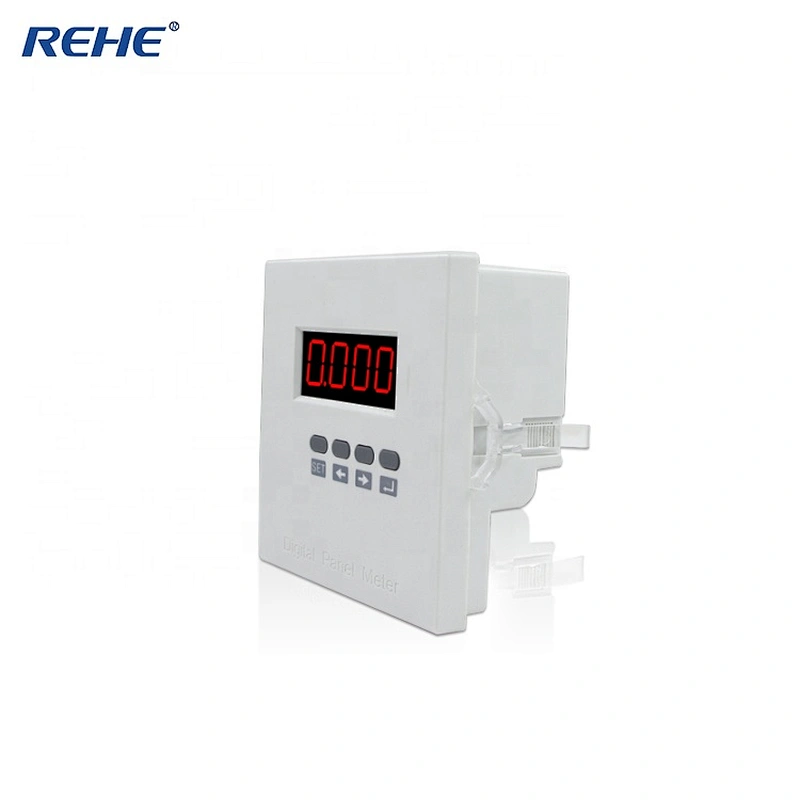

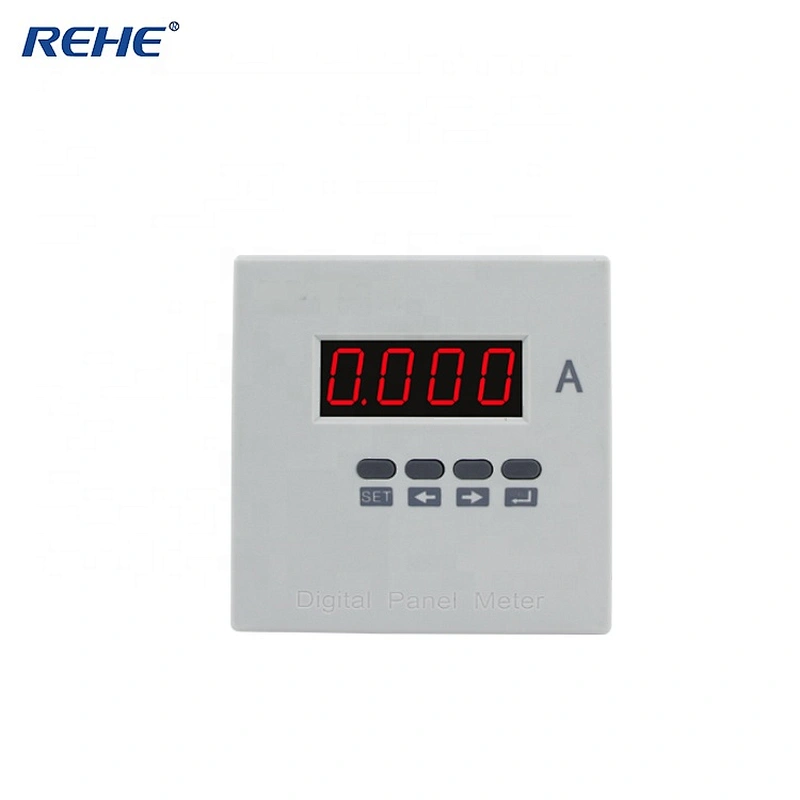

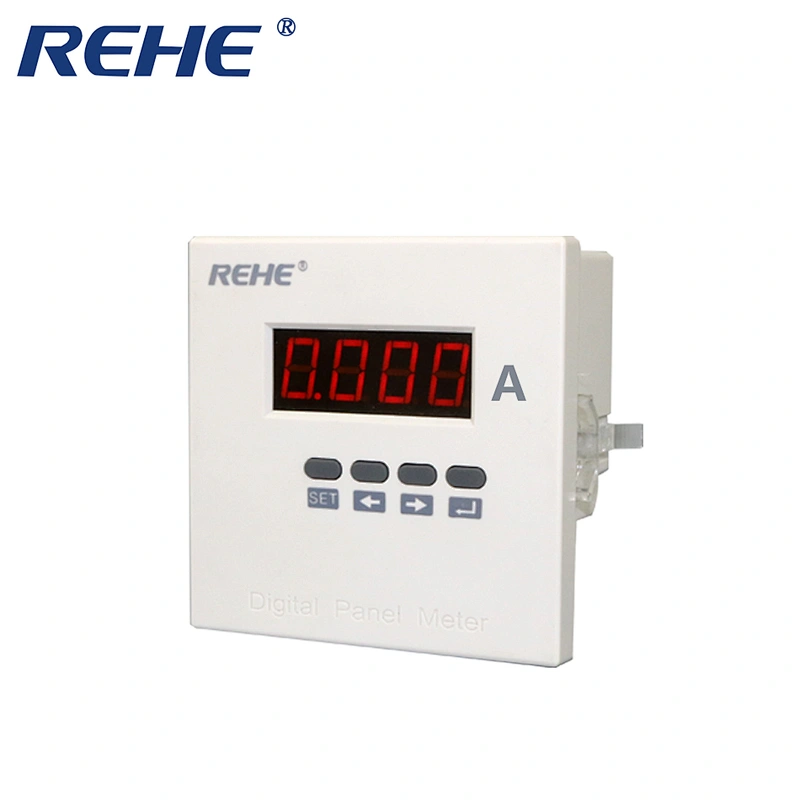

Hot-sell economical ammeter RH-AA61J single phase digital electric current meter
Product Description
| Accuracy of messurement | Current level 0.5 | |||
| Signal Input | Connection mode of single phase | |||
| Rated current of AC1A,AC5A,DC20mA,DC1A,DC5A,DC75mV | ||||
| Over load 1.2 times ( Continued ), 2 times / second ( instantaneous ) | ||||
| Power consumption <0.4VA/ phase | ||||
| Impedance<20mΩ | ||||
| The frequency of 45~65Hz or DC | ||||

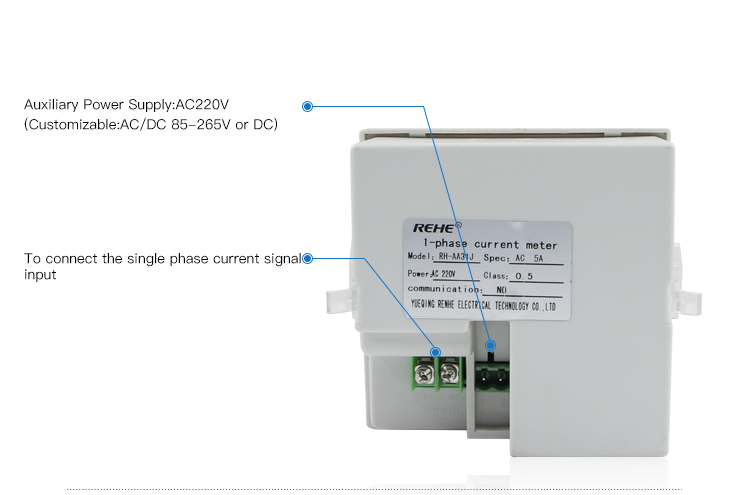

| Auxilliary power supply | AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V | |||
| Consumo de energia <4VA | ||||
| Function model | Communication interface 1 way RS-485 communication, Modbus-RTU protocol Modbus-RTU | |||
| Baud rate: 1200~9600bps, the default 2400bps | ||||
| Switch input support 2 stem node input | ||||
| The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A | ||||
| Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | ||||
| Environment | Working temperature:-10°C ~+55°C | |||
| Storage temperature:-25°C ~+70°C | ||||
| Relative humidity is less than 93%, no corrosive gas | ||||
| Elevation≤2500m | ||||
| Safety | Insulation resistance >100MΩ | |||
| AC withstand voltage AC 2KV | ||||
| Electromagnetic compatibility | ESD level 4 | |||
| Electrical fast transient burst level 4 | ||||
| Digital Intelligent Single phase AC Ampere Meter(9999 display programmable) | ||||

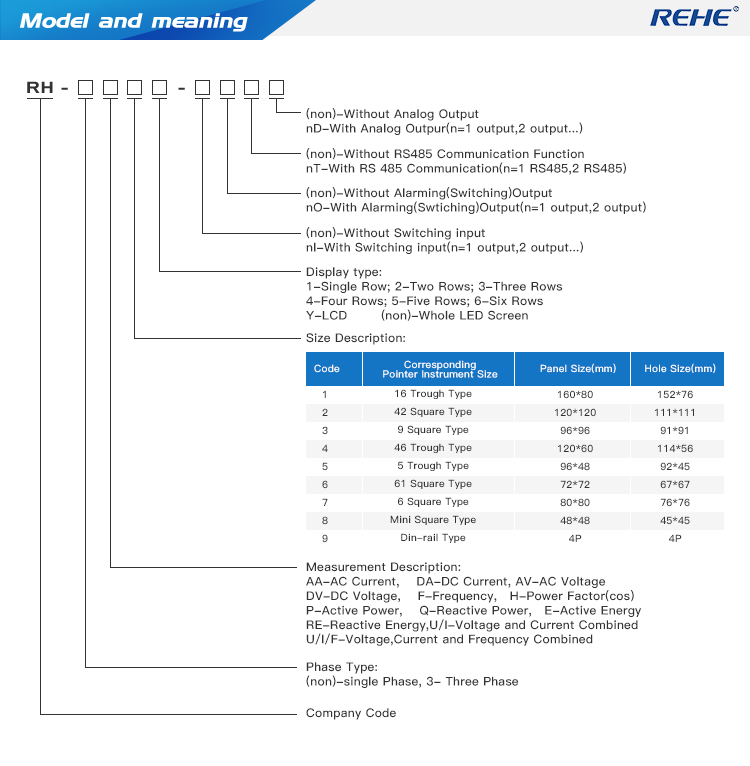

| NO modelo. | Display | Frame size(mm) | Hole size(mm) | Note |
| RH-AA11 | Digital Single-row LED | 160*80 | 152*76 | |
| RH-AA21 | Digital Single-row LED | 120*120 | 111*111 | |
| RH-AA31 | Digital Single-row LED | 96*96 | 92*92 | |
| RH-AA41 | Digital Single-row LED | 120*60 | 114*56 | |
| RH-AA51 | Digital Single-row LED | 96*48 | 92*45 | |
| RH-AA61 | Digital Single-row LED | 72*72 | 68*68 | |
| RH-AA71 | Digital Single-row LED | 80*80 | 76*76 | |
| RH-AA81 | Digital Single-row LED | 48*48 | 45*45 | |
