- Material:ABS
- Warranty:3 Years
- frequency:45~65Hz
- function:Measure Voltage
- Display:LED Digital Tube
- Switch output:4 ways be Available
- Color:white and black(optional)
- Power Supply:AC 220V or AC/DC 85~265V
- Communication:RS485 Port MODBUS-RTU Protocol(optinal)
- Product name:AC/DC Power Supply 96*96mm LED Single Phase Voltage Meter
- Display Type:Digital Only
- Brand Name:REHE
- Model Number:RH-AA31 or RH-DA31
- Measuring Range:0-9999
- Accuracy Class:0.5 class
- Operating Temperature:-10 C ~+55 C
- Dimensions:96*96mm
- Place of Origin:CN;ZHE
Dimension: customized | custom processing: Yes | Measuring range: 0-9999 | ||
Model NO.: RH-AA | accuracy class: 0.5 | Installation: embedded | ||
Brand name: REHE | Usage: high precision measurement of single phase DC voltage | Auxiliary power supply: DC 80V-270V, DC48V, DC24V, AC220V, AC380V, AC100V(V) | ||
| Performance Characteristics | ||||
| High precision measurement measurement of single phase DC voltage | ||||

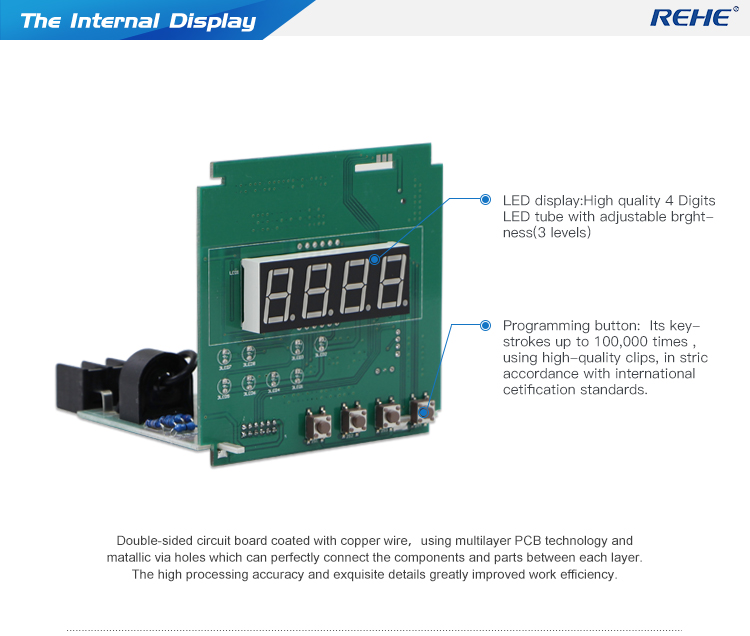

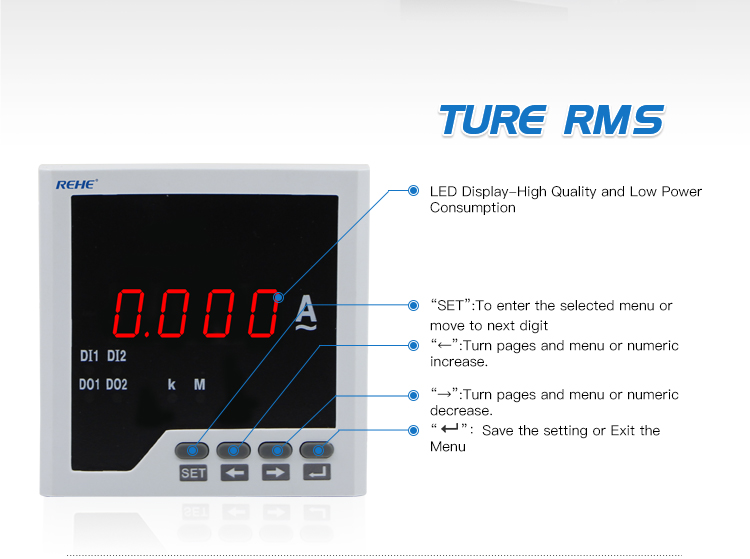

| Provide the digital tube display, local data query | ||||
| Programmable voltage ratio | ||||
| Support for RS-485 communication, Modubus-RTU protocol | ||||
| Support for switching input, output, analog quantity transmitting output | ||||
| Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V | ||||
| A variety of shapes, to meet the different requirements of the cabinet body electric circuit | ||||
| Technical Index | ||||
| Accuracy of measurement | Electric current 0.5 | |||

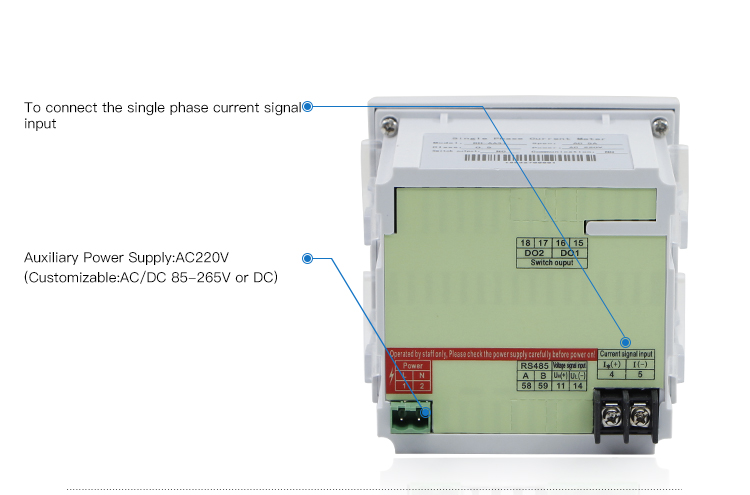

| Singal input | Connection mode of single phase | |||
| Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC 600V,DC600V | ||||
| Over load 1.2 times ( Continued ), 2 times / second ( instantaneous ) | ||||
| Power<1VA/ phase | ||||
| Impedance >300KΩ | ||||
| The frequency of 45~65Hz or DC | ||||
| Auxiliary power supply | AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V | |||
| Power consumption <4VA | ||||
| Function module | Communication interface 1 way RS-485 communication, Modbus-RTU protocol | |||
| Baud rate: 1200~9600bps, the default 2400bps | ||||
| Switch input support 2 stem node input | ||||
| The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A | ||||
| Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | ||||
| Environment | Working temperature:-10°C ~+55°C | |||
| Storage temperature:-25°C ~+70°C | ||||
| Relative humidity is less than 93%, no corrosive gas | ||||
| Elevation≤2500m | ||||
| Safety | Insulation resistance >100MΩ | |||
| AC withstand voltage AC 2KV | ||||
| Electromagnetic compatibility | ESD level 4 | |||
| Electrical fast transient burst level 4 | ||||
| Selcction ofSpecification | ||||
| Intelligent Digital Single phase Current Meter(9999 display programmable) | ||||

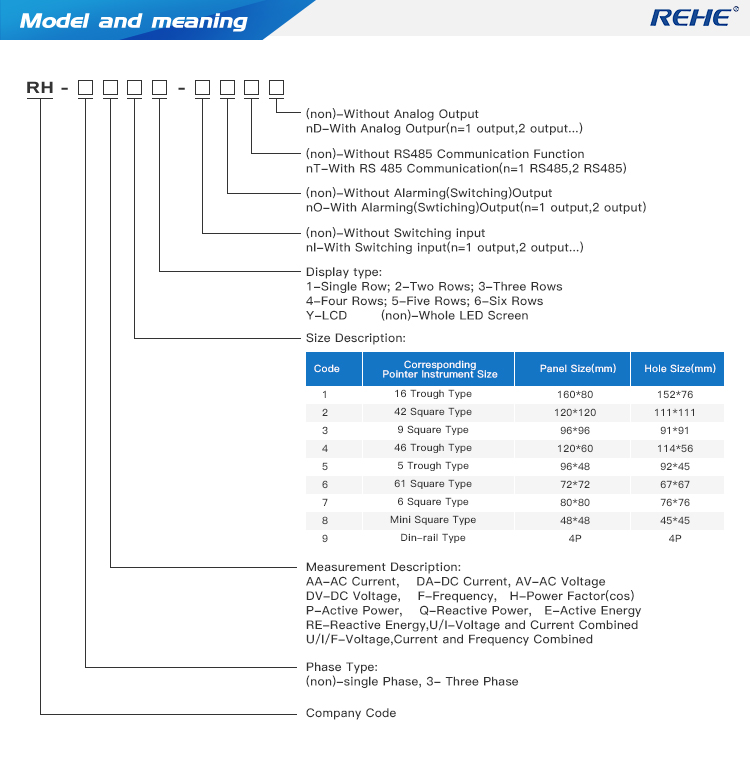

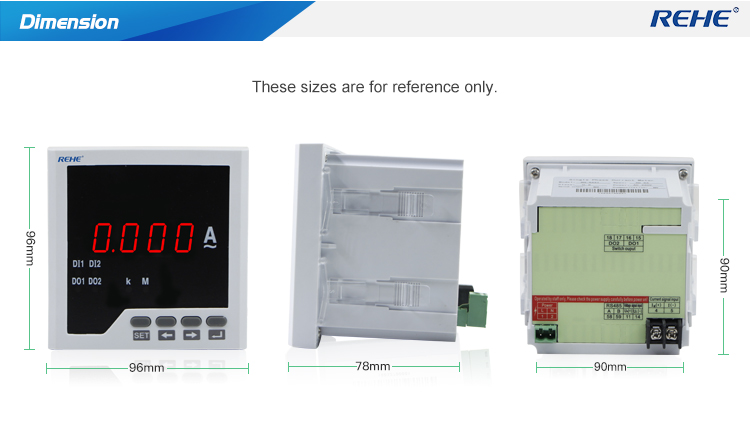

| Model NO. | Display | Frame size(mm) | Hole size(mm) | Communication Interface
|
| RH-AA11 | LED | 120*120 | 111*111 | 1 |
| RH-AA31 | LED | 96*96 | 92*92 | 1 |
| RH-AA41 | LED | 120*60 | 114*56 | 1 |
| RH-AA51 | LED | 96*48 | 92*45 | 1 |
| RH-AA61 | LED | 72*72 | 68*68 | 1 |
| RH-AA71 | LED | 80*80 | 76*76 | 1 |
| Order notes: Please write clearly the requested types, input signal and the functional modules, etc when purchasing. Others: Factory default settings (Use default setting if no instruction). | ||||
