- Color:Black
- OEM:Yes
- Power consumption:≤2VA
- Communication:RS485 Modbus
- Display:LED Display
- Rated current:1A, 5A
- Rated voltage:100V/220V/380V/1000V
- Baud Rate:1200/2400/4800/9600BPS(Default)
- Dielectric strength:2kV/min
- Warranty:1 Year
- Display Type:Digital Only
- Phase:Three Phase
- Brand Name:REHE
- Output Voltage:AC 220V
- Model Number:RH-3H11
- Dimensions:80*160
- Operating Temperature:-25℃~+55℃
- Measuring Energy Range:0-9999
- Accuracy Class:0.5, 0.2
Foreword
Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.
| Type | Accuracy | Rated Current | Power Supply |
| RH-3H31 | 0.5, 0.2 | AC Current 1A, 5A; AC Voltage 100V, 220V, 380V, 1000V | AC 220V; AC85~265&DC100-300V; AC380V; DC48V; DC24V; DC12V |

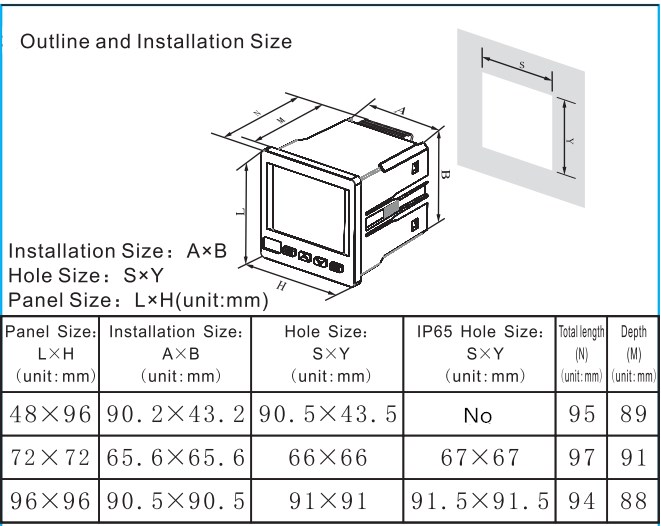

Installation Size
![%7G5KS)ZV]IKU`3U2J`O`S5_.jpg](https://yunpan.cdn.site.joinf.com/5085003477396663/2021/09/61301afe0be86.jpg?imageMogr2/format/webp/auto-orient)

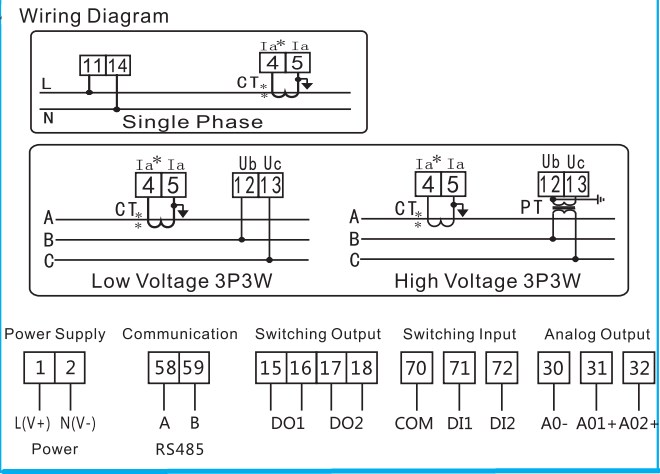

Wiring Diagram
