- Warranty:3 years
- Weight:1.0 kg
- Usage:Industrial, housedoor , agriculture and so on
- Color:white or black
- Certificates:CE,ISO
- function:Three phase smart digital frequency meter
- Frequency:45~65 HZ
- Name:Combination Meter
- Display:LCD
- Storage temperature:-25~+70 degrees
- Display Type:Analog and Digital
- Brand Name:REHE
- Model Number:RH-3UIF2Y
- Measuring Range:0-9999
- Accuracy Class:0.5
- Voltage:AC / DC 80V~270V
- Operating Temperature:-10 C ~ 55 C
- Dimensions:120*120mm (OEM/ODM)
- Place of Origin:Other

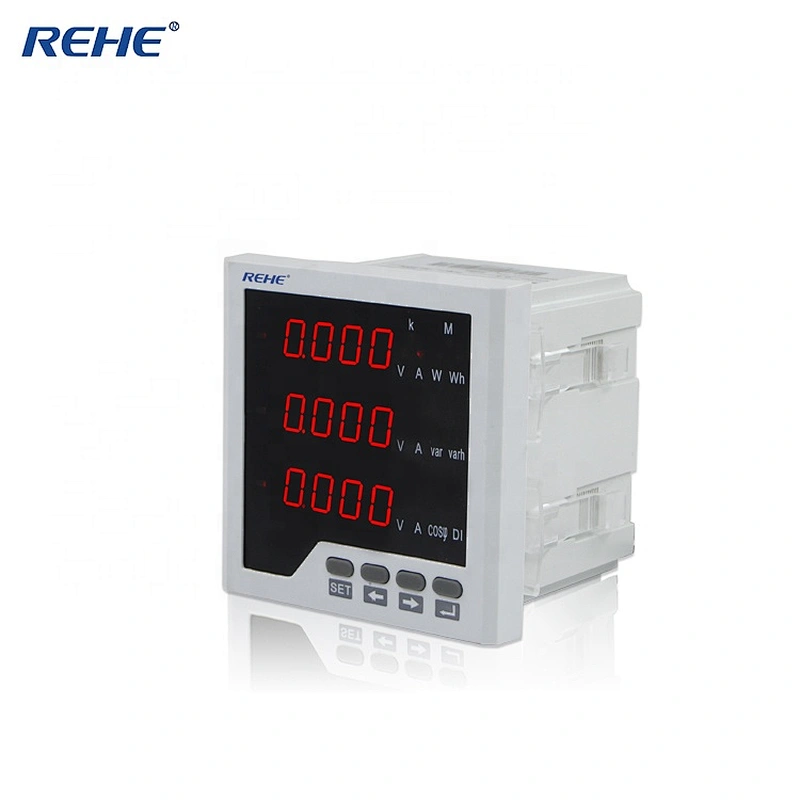

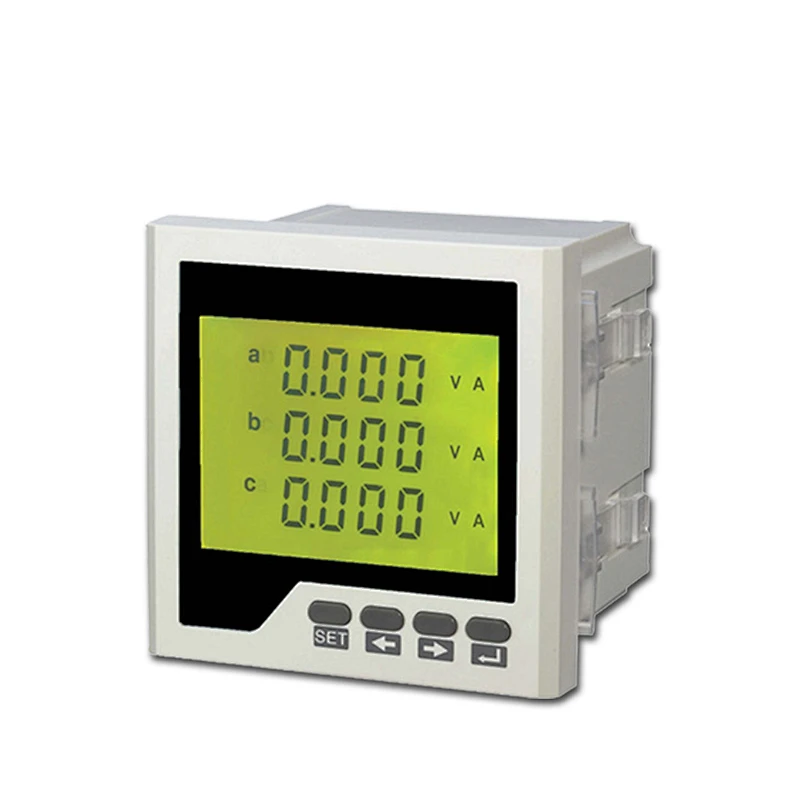

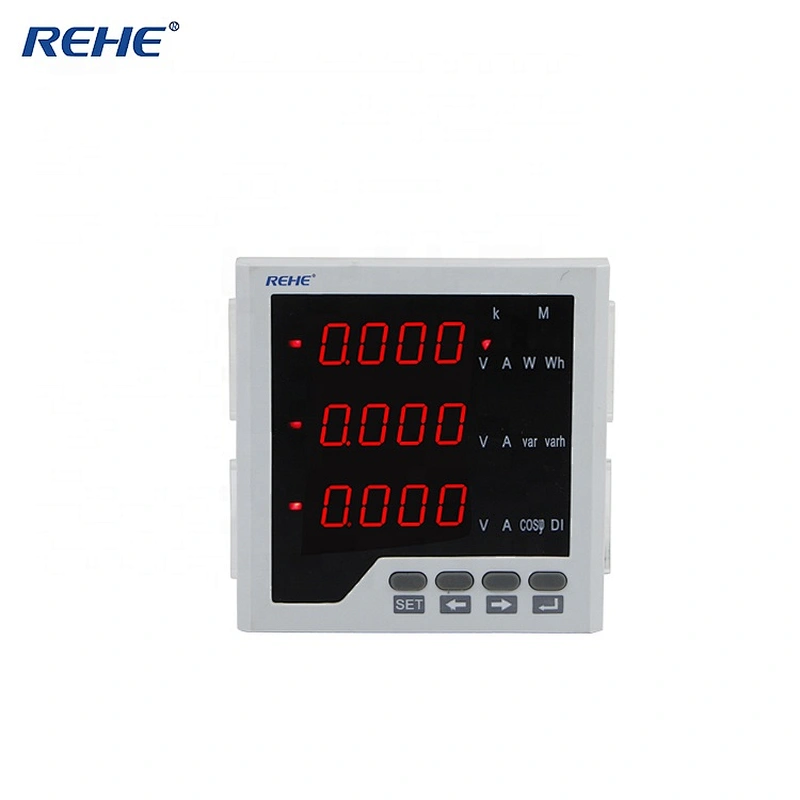

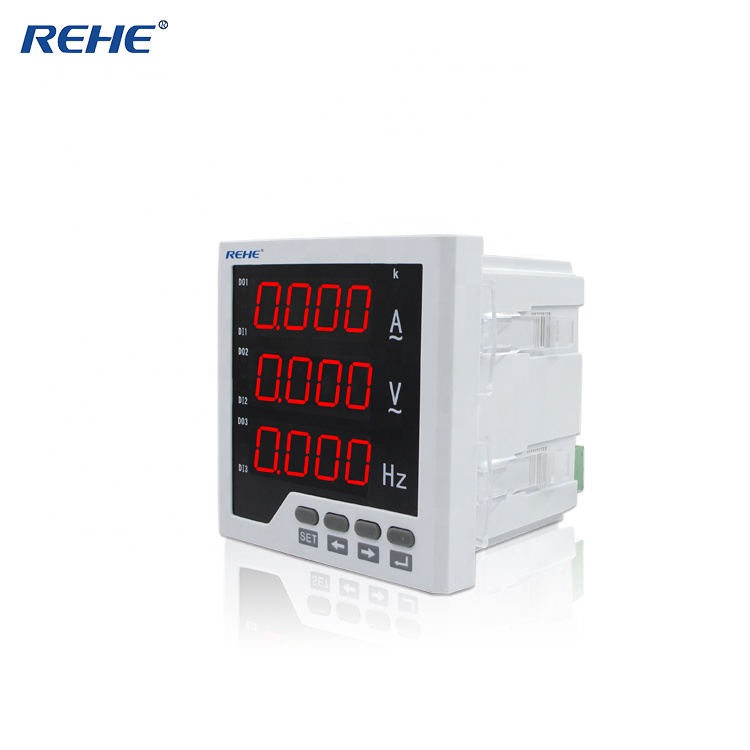

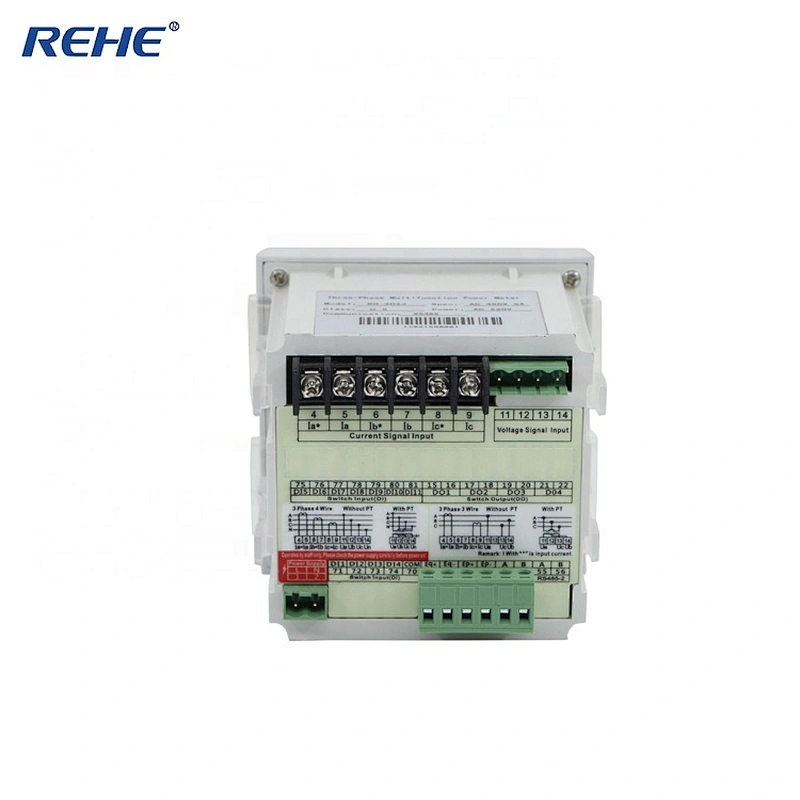

LCD Digital Solar Power Meter Three Phase Meter Current,Voltage and Power Combination Meter
| Technical Index | ||||
| Accuracy of measurement | Voltage level 0.5, current level 0.5, frequency ±0.2Hz | |||

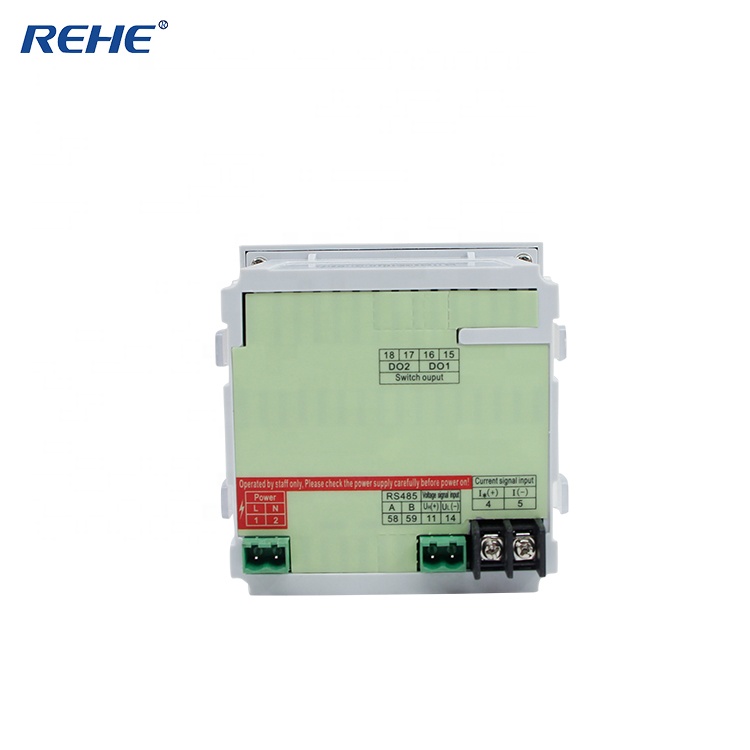

| Singal input | Connection mode of three phase four wire, three phase three line | |||
| Rated current of AC1A,AC5A | ||||
| Over load 1.2 times ( Continued ), 2 times / second ( instantaneous ) | ||||
| Power consumption voltage <1VA/phase, current: <.0.4VA/phase | ||||
| Impedance voltage: >300KΩ current: <20mΩ | ||||
| The frequency of 45~65Hz | ||||
| Auxiliary power supply | AC/DC 80V~270V, AC220V, AC380V, AC100V | |||
| Power consumption <4VA | ||||
| Function module | Communication interface 1 way RS-485 communication, Modbus-RTU protocol | |||
| Baud rate: 1200~9600bps, the default 2400bps | ||||
| Switch input support 4 stem node input | ||||
| The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A | ||||
| Transmission output support 3 analog output: 0/4~20mA or 0~5/10V | ||||
| Environment | Working temperature:-10°C ~+55°C | |||
| Storage temperature:-25°C ~+70°C | ||||
| Relative humidity is less than 93%, no corrosive gas | ||||
| Elevation≤2500m | ||||
| Safety | Insulation resistance >100MΩ | |||
| AC withstand voltage AC 2KV | ||||
| Electromagnetic compatibility | ESD level 4 | |||
| Electrical fast transient burst level 4 | ||||
| Selcction ofSpecification | ||||

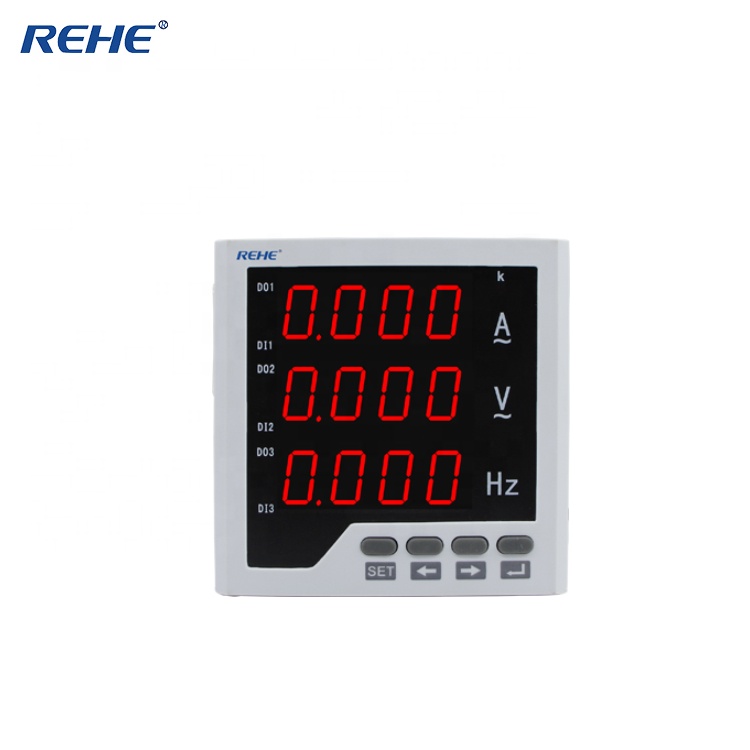

| Intelligent Digital Three phase Digital Panel Meter with A V Hz(9999 display programmable) | ||||
| Model NO. | Display | Frame size(mm) | Hole size(mm) | Remark |
| RH-3UIF2Y | LCD | 120*120 | 152*76 | * |
| RH-3UIF3Y | LCD | 96*96 | 111*111 | * |
| RH-3UIF6Y | LCD | 72*72 | 92*45 | * |
| RH-3UIF7Y | LCD | 80*80 | 68*68 | * |
