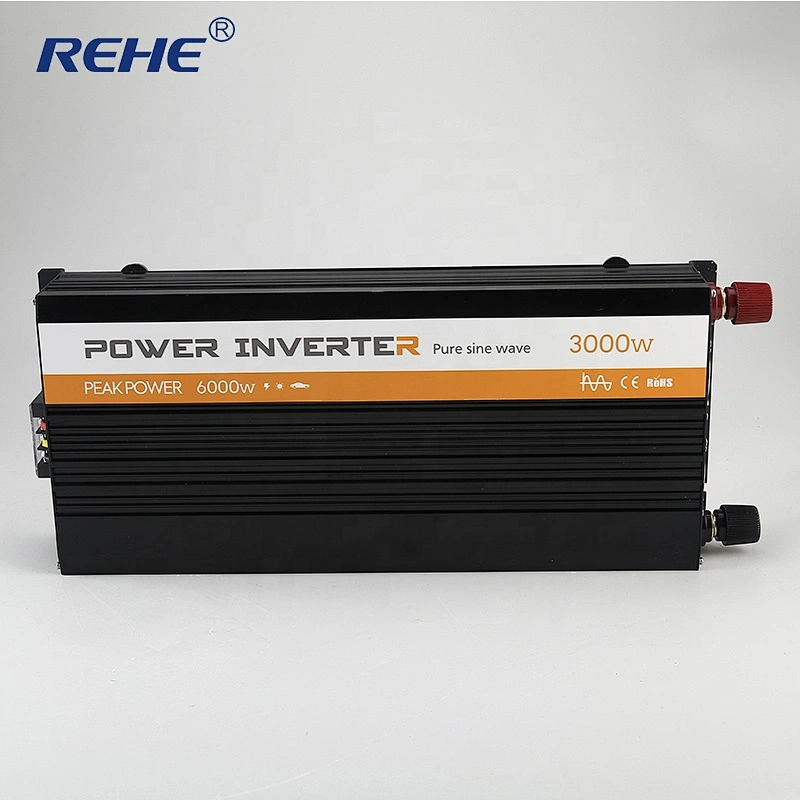

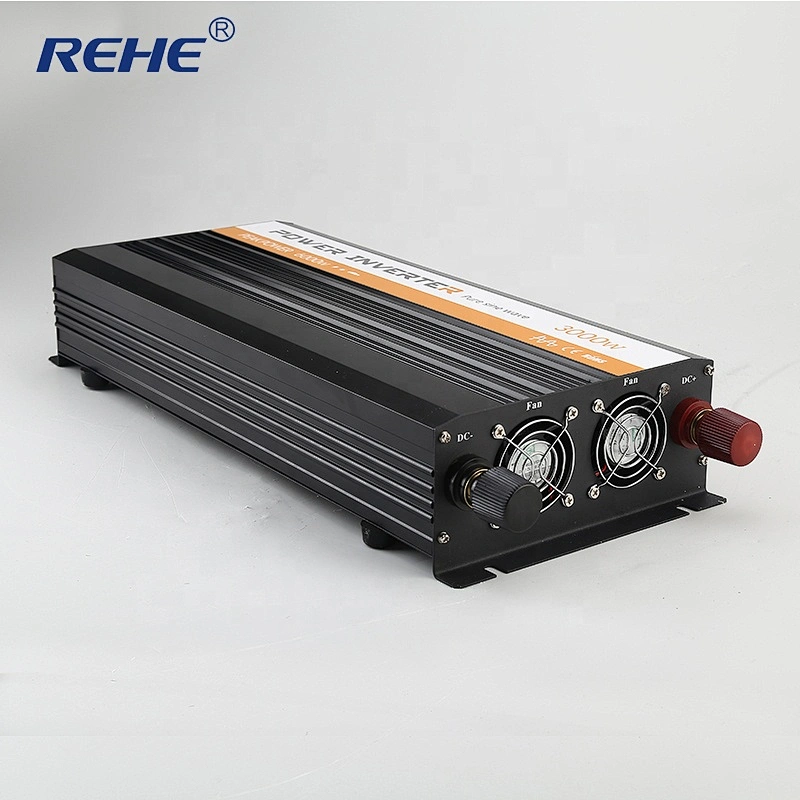

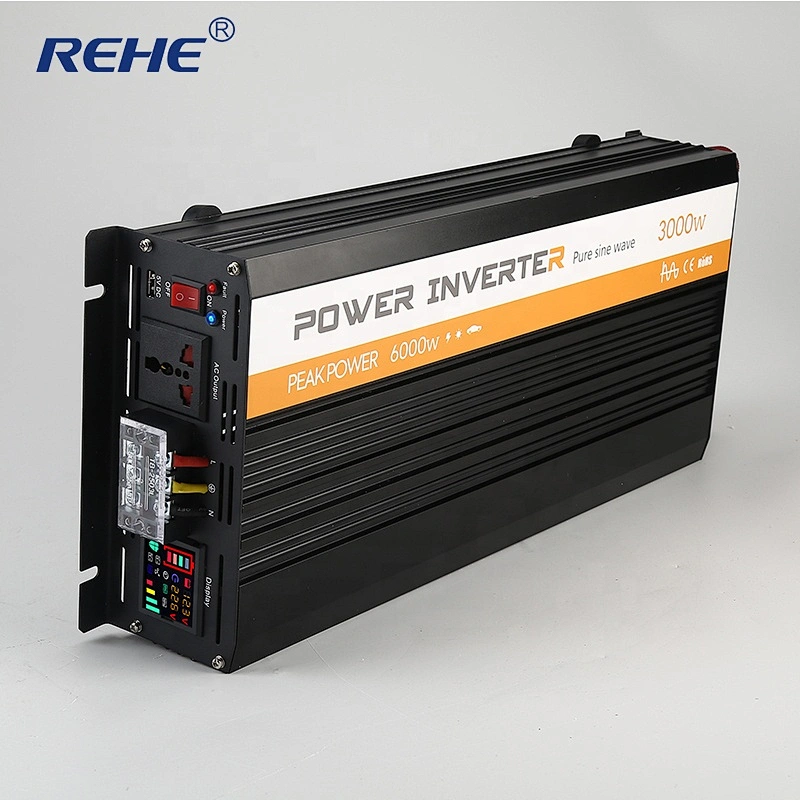

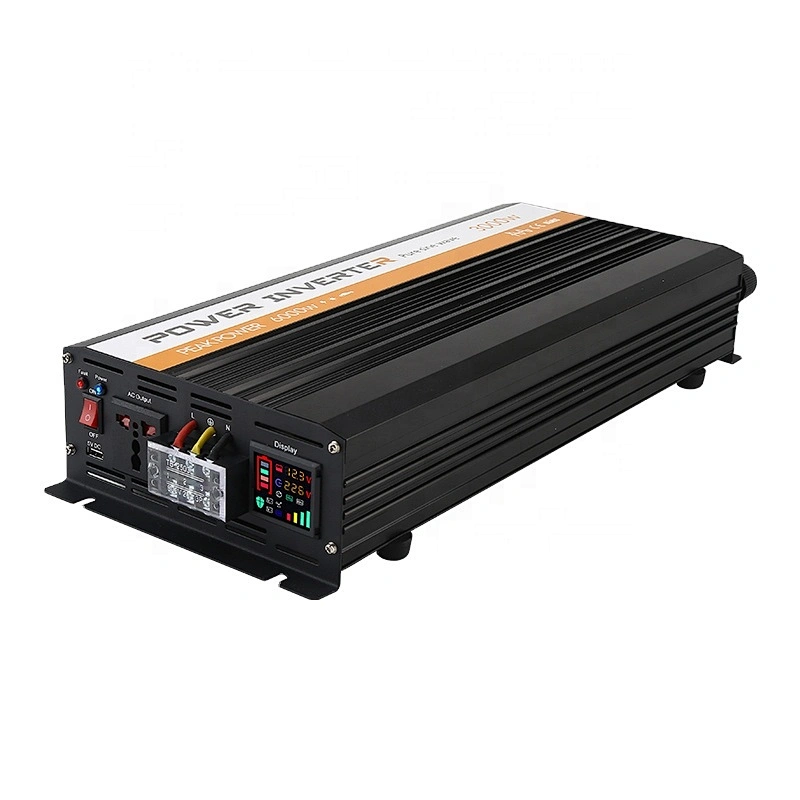

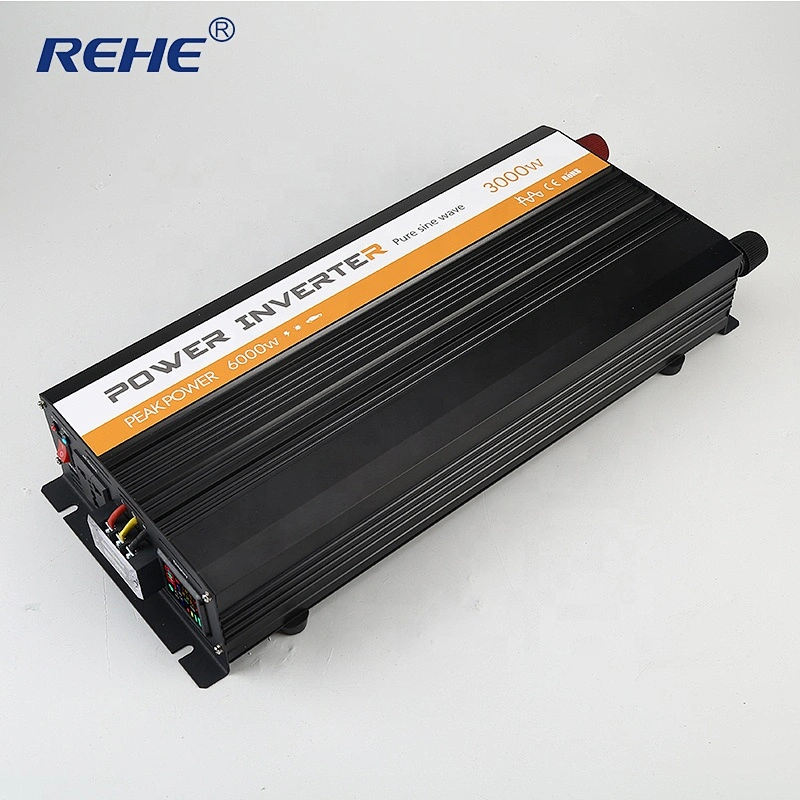

- Product name:Solar Power Inverter
- Color:Black
- Inverter type:Off-grid Solar Power Inverter
- Efficiency:94%
- Frequency:50/60HZ
- Wave form:THD<3%(Linear Load)
- Protection Function:Short Circut Protection
- Output waveform:Pure Sine Wave Output
- Output Type:Single
- Type:DC/AC Inverters
- Place of Origin:CN;ZHE
- Brand Name:REHE
- Model Number:CS12P3000
- Input Voltage:12Vdc/24Vdc/48Vdc
- Output Voltage:110VAC or 220VAC
- Output Frequency:50Hz/60Hz
- Size:480*199*84MM(LxWxH)
- Inverter Efficiency:94.2%
- Certificate:CE Rohs
- Warranty:2 Years
- Weight:8kg
| Products Specification: | ||||||
| Model | CS12P3000-1 | CS12P3000-2 | CS24P3000-1 | CS24P3000-2 | CS48P3000-1 | CS48P3000-2 |
| Rated Power | 3000W | |||||
| Surge Power | 6000W | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 1000MA | |||||
| Frequency | 50HZ±3 or 60HZ±3 | |||||
| Output Waveform | Pure sine wave | |||||
| Soft Start | YES | |||||
| THD/AC Regulation | THD<3%(Linear Load) | |||||
| Output Effciency | 94.2% MAX | |||||
| No Load Current | 1.8A | 1.8A | 0.9A | 0.9A | 0.5A | 0.5A |
| DC Voltage Range | 10V-15.5V | 10V-15.5V | 21.5V-28V | 21.5V-28V | 41.5V-59.5V | 41.5V-59.5V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||
| low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | |||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | |||
| Over Voltage Recovery | 14.8±0.5V | 29±0.5V | 59±1V | |||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | (-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade) | |||||
| Storage Temperature | (-30℃ - 70℃) | |||||
| Humidity | 90% MAX,Non-condensing | |||||
| Warranty | 2 Years | |||||
| Net Dimension | 480*199*84MM(LxWxH) | |||||
| Package Dimension | 608*260*147MM(LxWxH) | |||||
| N.W./Unit/G.W./Unit | 6.1kg/7.135Kg | |||||
| Ctn | 4PCS | |||||
| Meas./Ctn | 625*530*295mm(LxWxH) | |||||
| G.W./Ctn | 30.44kg | |||||
Send Message
Related Products

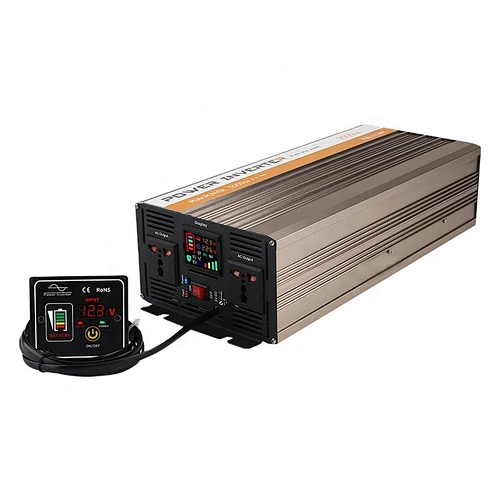

Model NO. CS12P2500

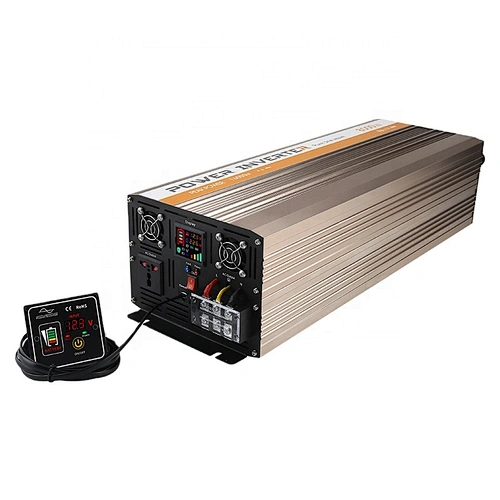

Model NO. CS12P8000
